BB30/PF30 73 MTB – Steel – 24-24mm spindle

R1,560.00
22 people are viewing this right now
footer-payment
Guaranteed safe & secure checkout

Description

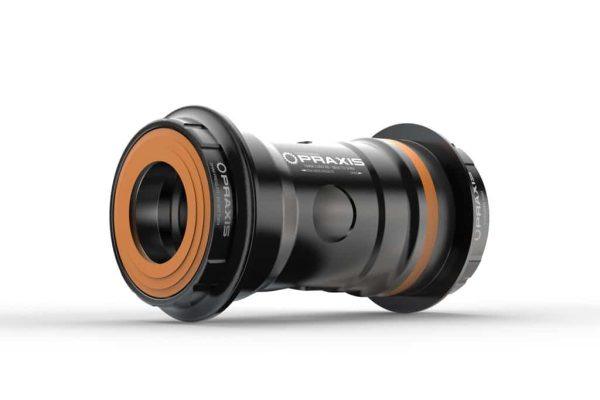

PRODUCT SHIMANO BB30/PF30 MTN BB
For use only with Shimano™ Hollowtech II MTN cranks in a BB30/PF30 73mm MTN frame
BUY THIS IF : You are installing a Shimano™ Hollowtech II MTN crank into a 73mm width BB30 or PF30 MTN frame.
TOOLS This Shimano BB30/PF30 BB requires TWO 16 notch traditional BB tools along with a press tool/drift for installation.
Use any standard outboard cup BB tool with 16 external notches and a 44mm ID
Please read and follow instruction manual carefully for exact installation steps.

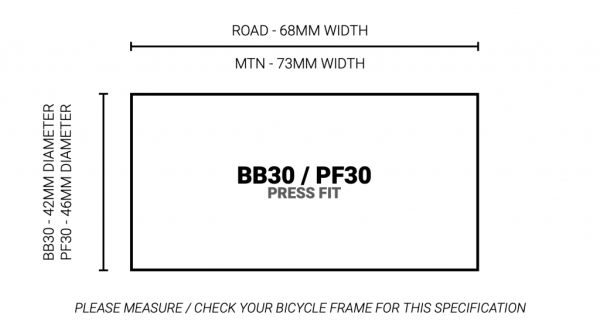

MEASUREMENT BB30 – 73mm Width MTN x 42mm Diameter

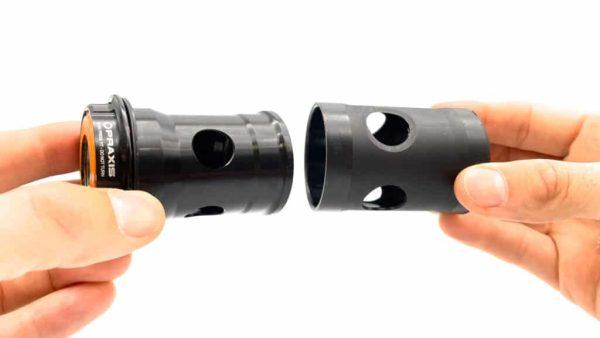

PF30 – 73mm Width MTN x 46mm Diameter (Included Sleeve for PF30)
BEARINGS Cartridge Steel
These are specifically made for use with Shimano Hollowtech II crank spindles.
24mm Drive and a 24mm NonDrive Bearing
MFG Forged & machined heat-treated alloy cups
AVG. WEIGHT 140g

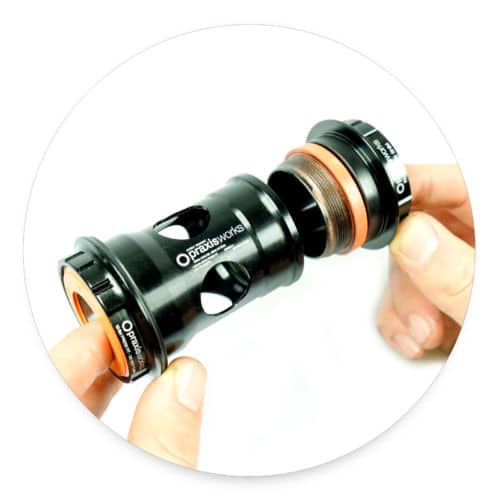

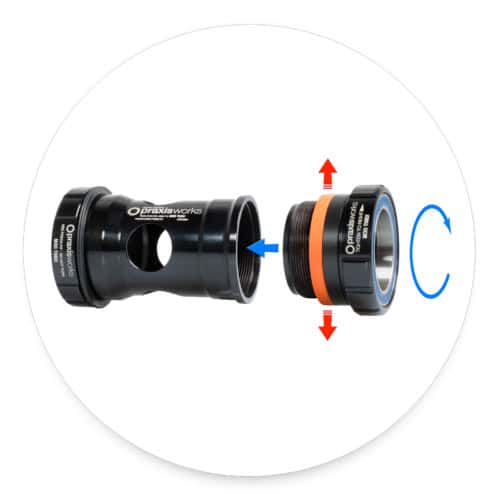

NOTE – Praxis Collet Design
– Made precisely to Shimano MTN bearing stance spec.
– This BB CANNOT be used for Road Cranks
– This BB IS NOT compatible with the proprietary Cannondale “BB30a” or “PF30a” frames.
– Frame shell cannot have any inner shell obstructions (like cable guides/screws) that prevent BB from installing.

Additional information

Spindle Size

Bottom Bracket Shell Type

BB30, PF30

Frame Shell Inner Diameter

42mm, 46mm

Frame Shell Width

73mm

Bearing Material

Steel

Crank Compatibility

Shimano Hollowtech II
